The new generation of 720-960KW flexible charging reactor adopts dual-matrix topology,with power distribution according to demand and automatic power distribution, which is compatible with 1000V, supports the demand of 720-960KW 12-16 guns, supports remote fault diagnosis of operation and maintenance platform, supports
remote software and USB upgrade, and supports multi-platform access (State Grid, China Southern Power Grid, Xiaoju, Yunkuai Charging,Wei Jing Yun,Bank of China Energy Operation Platform,etc.).
Black box function
When the electric vehicle is damaged or burned during charging,the black box of the charging pile will
provide the parameters of the charging process for investigation and evidence collection as the basis, and provide direct data for analyzing the reasons and determining the responsibility afterwards.
Freescale main chip
The main chip uses the working environment of the military product Freescale to meet the range of
negative 40 degrees to positive 80degrees.
Large memory
The average manufacturer has 1000 pieces of charging data, and our charging pile charging data can record more than 5000 pieces.
Support multiple mainstream power modules
Youyou Green Energy, Huawei, ZTE,Yingfeiyuan, Yingkerui, Yonglian,Shenghong,etc.
Support special engineering vehicles
·Support bus, dump truck and other special engineering vehicles with double guns and cross piles.
Real-time online after-sales maintenance platform
·There is a dedicated real-time online after-sales maintenance platform for remote diagnosis,remote maintenance and remote modification of software problems. Once there is a problem with the charging module ammeter, display screen,AC contactor, fuse, card reader, shunt, DC contactor, emergency stop switchrelay and auxiliary power supply, it can be viewed in the background, which is convenient for after-sales personnel to take materials for maintenance.
| Flexible Shared Charging Pile (720-960kw) | ||
| GY-1000-720-F-9, GY-1000-960-F-9 | ||
| Input Characteristics |
Input system | Three phase five line(A+B+C+N+PE) |
| Input voltage range (v) | AC380V ±15% | |
| Power factor | ≥0.99 | |
| Output Characteristics | Input frequency range (Hz) | 45~45Hz |
| Efficiency | Peak efficiency of the whole machine>96.3% | |
| Dc output voltage (v) | 200-1000 VDC,Support minimum DC50V output | |
| Constant power voltage range (v) | 300~1000VDC | |
| Maximum output power (KW) | 720-960KW | |
| Maximum output current of the whole machine (A) | 1440-1920A | |
| Maximum current of single gun | GB2015-250A DCteminal:single gun 250A;GB2015-600A/chaochong-600A Liquid-cooled overcharge teminal:single gun 600A |
|
| Number of output paths (paths) | 12~16 paths | |
| Basic Characteristics | The protection grades | IP54 |
| Defencive function | Input overvoltage and undervoltage protection,output overvoltage and undervoltage protection,short circuit protection, overcurrent protection,overtemperature protection and lightning protection. | |
| Overall dimensions (width*depth*height) |

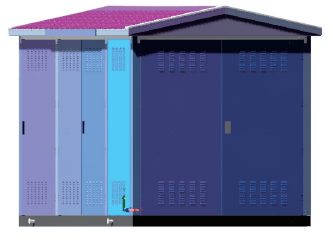

Intelligent charging reactor box transformer 2400*6500*2760mm:GB2015- 250A Dc terminal: 280*280*1239mm;GB2015- 600A/CHAOCHONG Liquid-cooled overcharge terminal: 630*280*1239mm |
|
| Environmental Index |
Relative temperature | 5%~95%(Non-condensation) |
| Altitude | ≤2000m,Derated use above 2000m | |
| Operating ambient temperature | -20℃~+65℃,Derating work above 55℃ | |
